微星Z97S SLI KRAIT EDITION主板用户使用说明书pdf格式

微星Z97S SLI KRAIT EDITION主板支持 Socket 1150 架构的第四代及第五代 Intel® Core™ / Pentium® / Celeron® 处理器，采用Command Center，可全面掌控计算机设定。以下文档是微星Z97S SLI KRAIT EDITION使用说明书，为英文版，有需要的朋友可立即下载此文档。

温馨提示：

本文档为PDF格式文档，因此需确保在阅读之前你已经安装了pdf阅读器，如果尚未安装阅读器，建议下载福昕pdf阅读器或其他PDF阅读器，进行安装后阅读。

微星Z97S SLI KRAIT EDITION主板说明书目录

Chapter 1 Getting Started............................................................................1-1

Packing Contents .................................................................................................1-2

Assembly Precautions ..........................................................................................1-3

Motherboard Specifications ..................................................................................1-4

Connectors Quick Guide ......................................................................................1-7

Back Panel Quick Guide ......................................................................................1-9

CPU (Central Processing Unit) ..........................................................................1-11

Introduction to the LGA 1150 CPU ..............................................................1-11

CPU & Heatsink Installation .........................................................................1-12

Memory ..............................................................................................................1-15

Dual-Channel mode Population Rule ..........................................................1-15

Mounting Screw Holes .......................................................................................1-16

Power Supply .....................................................................................................1-17

JPWR1~2: ATX Power Connectors .............................................................1-17

Expansion Slots .................................................................................................1-18

PCI_E1~5: PCIe Expansion Slots ................................................................1-18

PCI1~2: PCI Expansion Slots ......................................................................1-18

Video/ Graphics Cards ......................................................................................1-19

Single Video Card Installation ......................................................................1-19

Internal Connectors ............................................................................................1-20

SATA1~6: SATA Connectors ......................................................................1-20

M2_1: M.2 Connector ..................................................................................1-21

SATA_EXP1: SATA Express Connector ....................................................1-21

CPUFAN1~2,SYSFAN1~3: Fan Power Connectors ....................................1-22

JFP1, JFP2: System Panel Connectors ......................................................1-23

JUSB1~2: USB 2.0 Expansion Connectors .................................................1-24

JUSB3: USB 3.0 Expansion Connector .......................................................1-24

JCI1: Chassis Intrusion Connector ..............................................................1-25

JAUD1: Front Panel Audio Connector .........................................................1-25

JLPT1: Parallel Port Connector ...................................................................1-26

JCOM1: Serial Port Connector ....................................................................1-26

JTPM1: TPM Module Connector .................................................................1-27

JBAT1: Clear CMOS Jumper .......................................................................1-27

Drivers and Utilities ............................................................................................1-28

Driver/ Utilities Installation ...........................................................................1-28

Chapter 2 Quick Installation ........................................................................2-1

CPU Installation ...................................................................................................2-2

Memory Installation ..............................................................................................2-4

Motherboard Installation .......................................................................................2-5

Power Connectors Installation .............................................................................2-7

SATA HDD Installation .........................................................................................2-9

M.2 module Installation ......................................................................................2-10

Front Panel Connector Installation .....................................................................2-11

JFP1 Connector Installation .........................................................................2-11

Front Panel Audio Connector Installation ....................................................2-11

Peripheral Connector Installation .......................................................................2-12

USB2.0 Connector Installation .....................................................................2-12

USB3.0 Connector Installation .....................................................................2-12

Graphics Card Installation ..................................................................................2-13

Chapter 3 BIOS Setup .................................................................................3-1

Entering Setup .....................................................................................................3-2

Entering BIOS Setup .....................................................................................3-2

Overview ..............................................................................................................3-3

Operation .............................................................................................................3-6

Updating BIOS .....................................................................................................3-7

Updating the BIOS with M-FLASH .................................................................3-7

SETTINGS ...........................................................................................................3-8

System Status ................................................................................................3-8

Advanced .......................................................................................................3-8

Boot .............................................................................................................3-16

Security ........................................................................................................3-16

Save & Exit ..................................................................................................3-17

OC ......................................................................................................................3-18

M-FLASH ...........................................................................................................3-26

OC PROFILE .....................................................................................................3-27

HARDWARE MONITOR ....................................................................................3-28

Appendix A Realtek Audio .......................................................................... A-1

Software Configuration .........................................................................................A-2

Software panel overview ................................................................................A-2

Auto popup dialog ..........................................................................................A-3

Hardware Default Setting .....................................................................................A-4

Appendix B Intel RAID ................................................................................ B-1

Introduction ..........................................................................................................B-2

Using Intel Rapid Storage Technology Option ROM............................................B-3

Degraded RAID Array ........................................................................................B-10

System Acceleration (optional) ..........................................................................B-12

RST Synchronization (optional) .........................................................................B-14

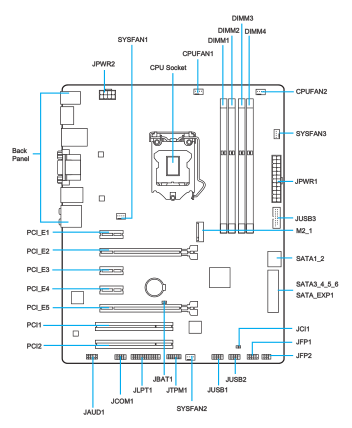

微星Z97S SLI KRAIT EDITION主板说明书——主板结构图

微星Z97S SLI KRAIT EDITION规格参数

SATA Express 1

CPU 插槽 1150

CPU (最高支持) i7

M.2 port 1

系统总线 100MHz

芯片组 Intel® Z97 Express

DDR3 内存 DDR3 1066/1333/1600/1866*/2000*/2133*/2200*/2400*/2600*/2666*/2800*/3000*/3100*/3200*(*OC) MHz

内存通道 Dual

内存插槽 4

最大内存 (GB) 32

PCI-Ex16 2

PCI-E Gen Gen3 (16,0) (8,8)

PCI-Ex1 3

PCI 2

SATAIII 6

USB 3.0 接口 (前端) 2

USB 2.0 接口 (前端) 4

RAID 0/1/5/10

网络接口 10/100/1000*1

TPM 1

USB 3.0 接口 (背板) 4

USB 2.0 接口 (背板) 2

音源接口 (背板) 6

VGA 1

HDMI 1

DVI 1

共享最大显存 (MB) 1760

DirectX DX11

尺寸 ATX

SLI Y

CrossFire Y
