微星Z87-G55/Z87-S02主板用户使用说明书pdf格式

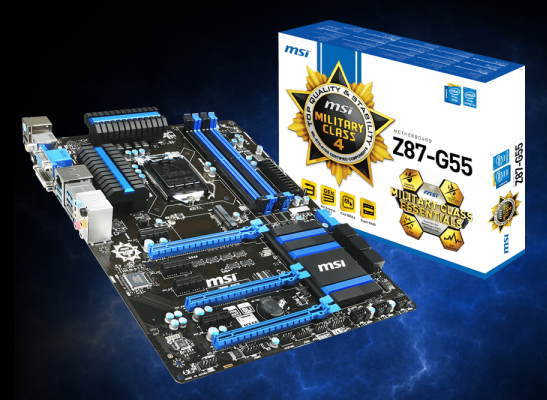

今天小编给大家介绍的是微星Z87-G55和Z87-S02主板使用说明书，为英文版。微星Z87-G55主板支持Socket 1150架构的第四代 Intel® Core™/Pentium®/Celeron® 处理器，支持NVIDIA SLI & AMD CrossFire 多显示适配器技术，使用Fast Boot，可快速开机进入操作系统。以下文档是微星Z87-G55/Z87-S02说明书，有需要的朋友可立即下载此文档。

温馨提示：

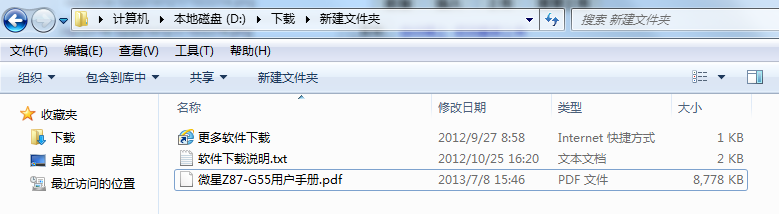

本文档为PDF格式文档，因此需确保在阅读之前你已经安装了pdf阅读器，如果尚未安装阅读器，建议下载福昕pdf阅读器或其他PDF阅读器，进行安装后阅读。

微星Z87-G55/Z87-S02说明书目录

Preface ............................................................................................................i

Copyright Notice .......................................................................................................ii

Trademarks ..............................................................................................................ii

Revision History .......................................................................................................ii

Smartphone Application ..........................................................................................iii

Technical Support ...................................................................................................iii

Safety Instructions ...................................................................................................iv

FCC-B Radio Frequency Interference Statement ................................................... v

CE Conformity ......................................................................................................... v

Radiation Exposure Statement ...............................................................................vi

European Community Compliance Statement ........................................................vi

Taiwan Wireless Statements ...................................................................................vi

Japan VCCI Class B Statement ..............................................................................vi

Korea Warning Statements .....................................................................................vi

Battery Information .................................................................................................vii

Chemical Substances Information .........................................................................vii

WEEE (Waste Electrical and Electronic Equipment) Statement ...........................viii

Chapter 1 Getting Started............................................................................1-1

Packing Contents .................................................................................................1-2

Optional Accessories ...........................................................................................1-2

Assembly Precautions ..........................................................................................1-3

Motherboard Specifications ..................................................................................1-4

Connectors Quick Guide ......................................................................................1-7

Back Panel Quick Guide ......................................................................................1-9

CPU (Central Processing Unit) ..........................................................................1-11

Introduction to the LGA 1150 CPU ..............................................................1-11

CPU & Heatsink Installation .........................................................................1-12

Memory ..............................................................................................................1-15

Dual-Channel mode Population Rule ..........................................................1-15

Mounting Screw Holes .......................................................................................1-16

Power Supply .....................................................................................................1-17

JPWR1~2: ATX Power Connectors .............................................................1-17

Expansion Slots .................................................................................................1-18

PCI_E1~E7: PCIe Expansion Slot ...............................................................1-18

PCIe x16 Slots Bandwidth Table ................................................................1-18

Video/ Graphics Cards ......................................................................................1-19

Single Video Card Installation ......................................................................1-19

AMD CrossFire™ (Multi-GPU) Technology .................................................1-20

NVIDIA ® SLI Technology .............................................................................1-22

Internal Connectors ............................................................................................1-24

SATA1~6: SATA Connector .......................................................................1-24

CPUFAN1~2,SYSFAN1~3: Fan Power Connectors ....................................1-25

JFP1, JFP2: System Panel Connectors ......................................................1-26

JUSB1~3: USB 2.0 Expansion Connector ...................................................1-27

JTPM1: TPM Module Connector .................................................................1-28

JAUD1: Front Panel Audio Connector .........................................................1-29

JCOM1: Serial Port Connector ....................................................................1-30

Jumper ...............................................................................................................1-30

JBAT1: Clear CMOS Jumper .......................................................................1-30

Voltage Checkpoints ..........................................................................................1-31

V-Check Spots .............................................................................................1-31

Drivers and Utilities ............................................................................................1-32

Total Installer ...............................................................................................1-32

Chapter 2 Quick Installation ........................................................................2-1

CPU Installation ...................................................................................................2-2

Memory Installation ..............................................................................................2-4

Motherboard Installation .......................................................................................2-5

Power Connectors Installation .............................................................................2-7

SATA HDD Installation .........................................................................................2-9

mSATA SSD Installation ....................................................................................2-10

Front Panel Connector Installation .....................................................................2-11

JFP1 Connecotr Installation .........................................................................2-11

Front Panel Audio Connector Installation ....................................................2-11

Peripheral Connector Installation .......................................................................2-12

USB2.0 Connector Installation .....................................................................2-12

USB3.0 Connector Installation .....................................................................2-12

Graphics Card Installation ..................................................................................2-13

Chapter 3 BIOS Setup .................................................................................3-1

Entering Setup .....................................................................................................3-2

Entering BIOS Setup .....................................................................................3-2

Overview ..............................................................................................................3-3

Operation .............................................................................................................3-5

SETTINGS ...........................................................................................................3-6

System Status ................................................................................................3-6

Advanced .......................................................................................................3-7

Boot .............................................................................................................3-14

Security ........................................................................................................3-14

Save & Exit ..................................................................................................3-15

OC ......................................................................................................................3-16

M-FLASH ...........................................................................................................3-24

OC PROFILE .....................................................................................................3-25

HARDWARE MONITOR ....................................................................................3-26

Appendix A Realtek Audio .......................................................................... A-1

Software Configuration .........................................................................................A-2

Software panel overview ................................................................................A-2

Auto popup dialog ..........................................................................................A-3

Hardware Default Setting .....................................................................................A-4

Appendix B Intel RAID ................................................................................ B-1

Introduction ..........................................................................................................B-2

Using Intel Rapid Storage Technology Option ROM............................................B-3

Degraded RAID Array ........................................................................................B-10

System Acceleration (optional) ..........................................................................B-12

RST Synchronization (optional) .........................................................................B-14

微星Z87-G55/Z87-S02说明书——主板结构图

微星Z87-G55规格参数

CPU 插槽 1150

CPU (最高支持) i7

系统总线 100MHz

芯片组 Intel® Z87 Express

DDR3 内存 DDR3 1066/1333/1600/1866*/2000*/2133*/2200*/2400*/2600*/2666*/2800*/3000*(*OC) MHz

mSATA 1

内存通道 Dual

内存插槽 4

最大内存 (GB) 32

PCI-Ex16 3

PCI-E Gen Gen3 (16,0,0) (8,8,0) (8,4,4)

PCI-Ex1 4

SATAIII 6

RAID 0/1/5/10

网络接口 10/100/1000*1

TPM 1

USB 3.0 接口 (背板) 4

USB 2.0 接口 (背板) 2

音源接口 (背板) 6

VGA 1

HDMI 1

DVI 1

共享最大显存 (MB) 1024

DirectX DX11

尺寸 ATX

SLI Y

CrossFire Y
