微星X99S SLI PLUS主板用户使用说明书pdf格式

微星X99S SLI PLUS主板支持Socket 2011-3架构的新一代Intel® Core™ Extreme® 处理器，使用USB Steel Power，提供稳定的5V供电，使USB传输更加稳定。以下文档是微星X99S SLI PLUS说明书，为英文版，有需要的朋友可立即下载此文档。

温馨提示：

本文档为PDF格式文档，因此需确保在阅读之前你已经安装了pdf阅读器，如果尚未安装阅读器，建议下载福昕pdf阅读器或其他PDF阅读器，进行安装后阅读。

微星X99S SLI PLUS说明书目录

Chapter 1 Getting Started............................................................................1-1

Packing Contents .................................................................................................1-2

Assembly Precautions ..........................................................................................1-3

Motherboard Specifications ..................................................................................1-4

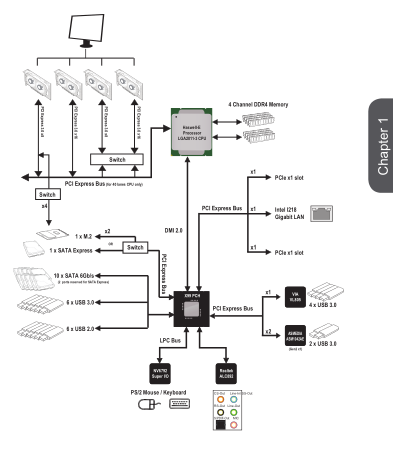

Block Diagram ......................................................................................................1-7

Connectors Quick Guide ......................................................................................1-8

Back Panel Quick Guide ....................................................................................1-10

CPU (Central Processing Unit) ..........................................................................1-12

Introduction to the LGA2011-3 CPU ............................................................1-12

CPU & Heatsink Installation .........................................................................1-13

Memory ..............................................................................................................1-16

Up to Quad-Channel mode ..........................................................................1-16

Defined Channel list .....................................................................................1-16

Suggestions for Multi-Channel mode population rule ..................................1-17

Dual-Channel mode .....................................................................................1-17

Triple-Channel mode ...................................................................................1-17

Quad-Channel mode ...................................................................................1-17

Quad-Channel mode ...................................................................................1-18

Mounting Screw Holes .......................................................................................1-19

Power Supply .....................................................................................................1-20

JPWR1~2: ATX Power Connectors .............................................................1-20

Expansion Slots .................................................................................................1-21

PCI_E1~6: PCIe Expansion Slots ................................................................1-21

PCIe Bandwidth Table ................................................................................1-21

Video/ Graphics Cards ......................................................................................1-22

Single Video Card Installation ......................................................................1-22

Internal Connectors ............................................................................................1-23

SATA1~10: SATA Connectors ....................................................................1-23

SATA_EX1: SATA Express Connector .......................................................1-24

M2_1: M.2 Port ............................................................................................1-24

CPUFAN1~2,SYSFAN1~3: Fan Power Connectors ....................................1-25

JFP1, JFP2: System Panel Connectors ......................................................1-26

JUSB1~2: USB 3.0 Expansion Connectors .................................................1-27

JUSB3~4: USB 2.0 Expansion Connectors .................................................1-28

JCI1: Chassis Intrusion Connector ..............................................................1-28

JAUD1: Front Panel Audio Connector .........................................................1-29

JTPM1: TPM Module Connector ................................................................1-29

Button .................................................................................................................1-30

OC1: OC Genie Button ...............................................................................1-30

POWER1: Power Button ..............................................................................1-31

RESET1: Reset Button ................................................................................1-31

Jumper ...............................................................................................................1-32

JBAT1: Clear CMOS Jumper .......................................................................1-32

JSLOW1: Slow Mode Booting Jumper ........................................................1-32

Switch .................................................................................................................1-33

BIOS1: Multi-BIOS Switch ...........................................................................1-33

Drivers and Utilities ............................................................................................1-34

Driver/ Utilities Installation ...........................................................................1-34

Chapter 2 Quick Installation ........................................................................2-1

CPU Installation ...................................................................................................2-2

Memory Installation ..............................................................................................2-4

Motherboard Installation .......................................................................................2-5

Power Connectors Installation .............................................................................2-7

SATA HDD Installation .........................................................................................2-9

M.2 module Installation ......................................................................................2-10

Front Panel Connector Installation .....................................................................2-11

JFP1 Connector Installation .........................................................................2-11

Front Panel Audio Connector Installation ....................................................2-11

Peripheral Connector Installation .......................................................................2-12

USB2.0 Connector Installation .....................................................................2-12

USB3.0 Connector Installation .....................................................................2-12

Graphics Card Installation ..................................................................................2-13

Chapter 3 BIOS Setup .................................................................................3-1

Entering Setup .....................................................................................................3-2

Entering BIOS Setup .....................................................................................3-2

Overview ..............................................................................................................3-3

Operation .............................................................................................................3-6

Updating BIOS .....................................................................................................3-7

Updating the BIOS with M-FLASH .................................................................3-7

SETTINGS ...........................................................................................................3-8

System Status ................................................................................................3-8

Advanced .......................................................................................................3-9

Boot .............................................................................................................3-13

Security ........................................................................................................3-14

Save & Exit ..................................................................................................3-15

OC ......................................................................................................................3-16

M-FLASH ...........................................................................................................3-26

OC PROFILE .....................................................................................................3-27

HARDWARE MONITOR ....................................................................................3-28

Appendix A Realtek Audio .......................................................................... A-1

Software Configuration .........................................................................................A-2

Software panel overview ................................................................................A-2

Auto popup dialog ..........................................................................................A-3

Appendix B Intel RAID ................................................................................ B-1

Introduction ..........................................................................................................B-2

Using Intel Rapid Storage Technology Option ROM............................................B-3

Degraded RAID Array ........................................................................................B-10

System Acceleration (optional) ..........................................................................B-12

RST Synchronization (optional) .........................................................................B-14

微星X99S SLI PLUS说明书——主板结构图

微星X99S SLI PLUS规格参数

DDR4 内存 DDR4 2133/2200*/ 2400*/2600*/2666*/2750*/3000*/3110*/3333*(*OC)MHz

SATA Express 1

CPU 插槽 2011-3

CPU (最高支持) i7

M.2 port 1

系统总线 100 / 125 / 167MHz

芯片组 Intel® X99 Express

内存通道 Quad

内存插槽 8

最大内存 (GB) 128

PCI-Ex16 4

PCI-E Gen Gen3

PCI-Ex1 2

SATAIII 10(2 x ports reserved for SATA Express port)

USB 3.0 接口 (前端) 4

USB 2.0 接口 (前端) 4

RAID 0/1/5/10(SATA1~6 only)

网络接口 10/100/1000*1

TPM 1

USB 3.0 接口 (背板) 8

USB 2.0 接口 (背板) 2

音源接口 (背板) 5 + Optical S/PDIF OUT

尺寸 ATX

SLI Y

3-way SLI Y

CrossFire Y
