微星970 GAMING主板用户使用说明书

微星970 GAMING主板用户使用说明书pdf格式

  • 大小:6.9M
  • 语言:英文
  • 平台:WinXP, WinAll
  • 更新:2014-12-16 11:16
  • 等级:
  • 类型:说明书
  • 网站:http://www.uzzf.com
  • 授权:免费软件
  • 厂商:
  • 产地:国产软件
好用好玩 50%(0)
坑爹 坑爹 50%(0)
软件介绍软件截图相关软件软件教程网友评论下载地址

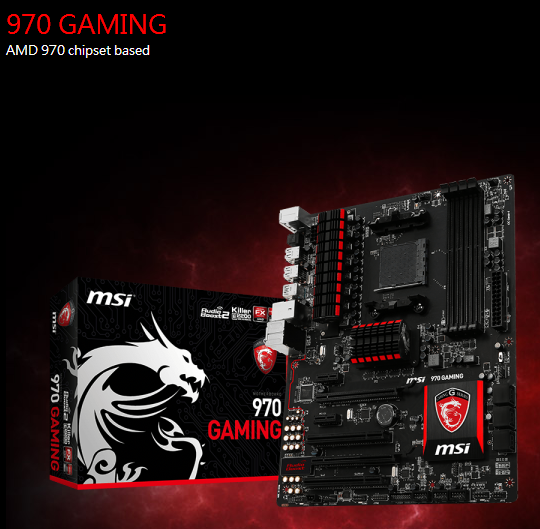

今天给大家介绍的是微星970 GAMING主板用户手册,为英文版,微星970 GAMING主板采用socket AM3+ 架构的 AMD FX / Phenom™ II / Athlon™ II / Sempron™ 处理器,第二代音皇技术Audio Boost 2,让用户获得更多音效体验。有需要的朋友可立即下载此文档。

温馨提示:

本文档为PDF格式文档,因此需确保在阅读之前你已经安装了pdf阅读器,如果尚未安装阅读器,建议下载福昕pdf阅读器或其他PDF阅读器,进行安装后阅读。

微星970 GAMING主板用户手册目录

Chapter 1 Getting Started............................................................................1-1

Packing Contents .................................................................................................1-2

Optional Accessories ...........................................................................................1-2

Assembly Precautions ..........................................................................................1-3

Motherboard Specifications ..................................................................................1-4

Connectors Quick Guide ......................................................................................1-7

Back Panel Quick Guide ......................................................................................1-9

CPU (Central Processing Unit) ..........................................................................1-11

Introduction to AM3/ AM3+ CPU .................................................................1-11

CPU & Cooler Installation ............................................................................1-12

Memory ..............................................................................................................1-14

Dual-Channel mode Population Rule ..........................................................1-14

Mounting Screw Holes .......................................................................................1-15

Power Supply .....................................................................................................1-16

JPWR1~2: ATX Power Connectors .............................................................1-16

Expansion Slots .................................................................................................1-17

PCI_E1~4: PCIe Expansion Slots ................................................................1-17

PCI1~2: PCI Expansion Slots ......................................................................1-17

Video/ Graphics Cards ......................................................................................1-18

Single Video Card Installation ......................................................................1-18

Internal Connectors ............................................................................................1-19

SATA1~6: SATA Connectors .....................................................................1-19

CPUFAN,SYSFAN1~4: Fan Power Connectors ..........................................1-20

JFP1, JFP2: System Panel Connectors ......................................................1-21

JUSB1~3: USB 2.0 Expansion Connectors ...............................................1-22

JUSB4: USB 3.0 Expansion Connector .......................................................1-22

JCI1: Chassis Intrusion Connector ..............................................................1-23

JTPM1: TPM Module Connector ................................................................1-23

JCOM1: Serial Port Connector ....................................................................1-24

JAUD1: Front Panel Audio Connector .........................................................1-24

JSP1: S/PDIF-Out Connector ......................................................................1-24

Jumper ...............................................................................................................1-25

JBAT1: Clear CMOS Jumper .......................................................................1-25

Switch ................................................................................................................1-26

SLOW_MODE: Slow Mode Booting Switch .................................................1-26

Drivers and Utilities ............................................................................................1-27

Total Installer ...............................................................................................1-27

Chapter 2 Quick Installation ........................................................................2-1

CPU Installation ...................................................................................................2-2

Memory Installation ..............................................................................................2-4

Motherboard Installation .......................................................................................2-5

Power Connectors Installation .............................................................................2-7

SATA HDD Installation .........................................................................................2-9

Front Panel Connector Installation .....................................................................2-10

JFP1 Connector Installation .........................................................................2-10

Front Panel Audio Connector Installation ....................................................2-10

Peripheral Connector Installation .......................................................................2-11

USB2.0 Connector Installation .....................................................................2-11

USB3.0 Connector Installation .....................................................................2-11

Graphics Card Installation ..................................................................................2-12

Chapter 3 BIOS Setup .................................................................................3-1

Entering Setup .....................................................................................................3-2

Entering BIOS Setup .....................................................................................3-2

Overview ..............................................................................................................3-3

Operation .............................................................................................................3-5

SETTINGS ...........................................................................................................3-6

System Status ................................................................................................3-6

Advanced .......................................................................................................3-7

Boot .............................................................................................................3-11

Security ........................................................................................................3-11

Save & Exit ..................................................................................................3-12

OC ......................................................................................................................3-13

M-FLASH ...........................................................................................................3-17

OC PROFILE .....................................................................................................3-18

HARDWARE MONITOR ....................................................................................3-19

Appendix A Realtek Audio .......................................................................... A-1

Software Configuration .........................................................................................A-2

Software panel overview ................................................................................A-2

Auto popup dialog ..........................................................................................A-3

Hardware Default Setting .....................................................................................A-4

Appendix B AMD RAID............................................................................... B-1

RAID Configuration ..............................................................................................B-2

Installing Driver ....................................................................................................B-8

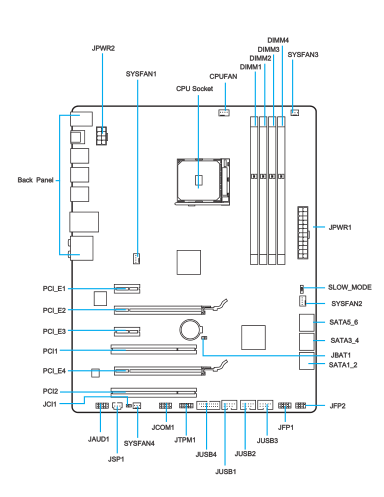

微星970 GAMING主板用户手册——主板结构图

微星970 GAMING规格参数

CPU 插槽 AM3+

CPU (最高支持) FX

系统总线 up to 4.8GT/s

芯片组 AMD® 970+SB950

DDR3 内存 DDR3 1066/1333/1600/1866/2133*(*OC)

内存通道 Dual

内存插槽 4

最大内存 (GB) 32

PCI-Ex16 2

PCI-E Gen Gen2 (1x16, 1x8)

PCI-Ex1 2

PCI 2

USB 3.0 接口 (前端) 2

SATAIII 6

USB 2.0 接口 (前端) 6

RAID 0/1/5/10

网络接口 10/100/1000*1

TPM 1

USB 3.0 接口 (背板) 2

USB 2.0 接口 (背板) 8

音源接口 (背板) 6

尺寸 ATX

APS Y

CrossFire Y

PC官方
安卓官方手机版
IOS官方手机版

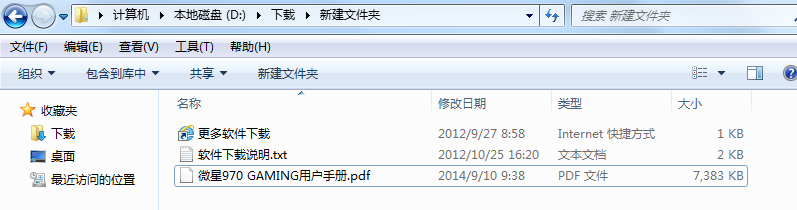

微星970 GAMING主板用户使用说明书截图
