技嘉GA-X99-SOC Force主板使用说明书pdf格式

技嘉GA-X99-SOC Force支持新一代Intel® Core™ i7 极致版处理器，支持8插槽4 信道 DDR4内存架构，支持Thunderbolt高速传输接口。以下文档是技嘉GA-X99-SOC Force使用手册，为英文版本，有需要的朋友可立即下载此文档。

温馨提示：

本文档为PDF格式文档，因此需确保在阅读之前你已经安装了pdf阅读器，如果尚未安装阅读器，建议下载福昕pdf阅读器或其他PDF阅读器，进行安装后阅读。

技嘉GA-X99-SOC Force使用手册目录

Box Contents...................................................................................................................6

Optional Items .................................................................................................................6

GA-X99-SOC Force Motherboard Layout .......................................................................7

GA-X99-SOC Force Motherboard Block Diagram...........................................................8

Chapter 1 Hardware Installation .....................................................................................9

1-1 Installation Precautions.................................................................................... 9

1-2 Product Specifications.................................................................................... 10

1-3 Installing the CPU and CPU Cooler ............................................................... 13

1-3-1 Installing the CPU...................................................................................................13

1-3-2 Installing the CPU Cooler .......................................................................................15

1-4 Installing the Memory..................................................................................... 16

1-4-1 4 Channel Memory Configuration...........................................................................16

1-4-2 Installing a Memory ................................................................................................17

1-5 Installing an Expansion Card ......................................................................... 18

1-6 Setting up AMD CrossFire?/NVIDIA? SLI? Configuration .............................. 19

1-7 Back Panel Connectors.................................................................................. 21

1-8 Onboard Buttons, Switches and LEDs........................................................... 23

1-9 Internal Connectors........................................................................................ 26

Chapter 2 BIOS Setup ..................................................................................................39

2-1 Startup Screen ............................................................................................... 40

2-2 The Main Menu .............................................................................................. 41

2-3 M.I.T. .............................................................................................................. 44

2-4 System Information ........................................................................................ 56

2-5 BIOS Features ............................................................................................... 57

2-6 Peripherals..................................................................................................... 60

2-7 Chipset........................................................................................................... 62

2-8 Power Management....................................................................................... 65

2-9 Save & Exit..................................................................................................... 67

Chapter 3 Configuring SATA Hard Drive(s)...................................................................69

3-1 Configuring SATA Controllers......................................................................... 69

3-2 Installing the SATA RAID/AHCI Driver and Operating System....................... 81

Chapter 4 Drivers Installation........................................................................................85

4-1 Chipset Drivers............................................................................................... 85

4-2 Application Software ...................................................................................... 86

4-3 Information ..................................................................................................... 86

Chapter 5 Unique Features...........................................................................................87

5-1 BIOS Update Utilities ..................................................................................... 87

5-1-1 Updating the BIOS with the Q-Flash Utility.............................................................87

5-1-2 Updating the BIOS with the @BIOS Utility .............................................................90

5-1-3 Using Q-Flash Plus.................................................................................................91

5-2 APP Center .................................................................................................... 92

5-2-1 EasyTune................................................................................................................93

5-2-2 System Information Viewer.....................................................................................94

5-2-3 EZ Setup.................................................................................................................95

5-2-4 Fast Boot ................................................................................................................98

5-2-5 Smart TimeLock......................................................................................................99

5-2-6 Smart Recovery 2.................................................................................................100

5-2-7 USB Blocker .........................................................................................................102

5-2-8 Ambient LED ........................................................................................................103

5-2-9 V-Tuner.................................................................................................................104

5-2-10 Smart Switch ........................................................................................................105

5-2-11 Cloud Station Server ............................................................................................106

Chapter 6 Appendix ....................................................................................................113

6-1 Configuring Audio Input and Output............................................................. 113

6-1-1 Configuring 2/4/5.1/7.1-Channel Audio.................................................................113

6-1-2 Configuring S/PDIF Out........................................................................................115

6-1-3 Configuring Microphone Recording......................................................................116

6-1-4 Using the Sound Recorder ...................................................................................118

6-2 Troubleshooting............................................................................................ 119

6-2-1 Frequently Asked Questions ................................................................................119

6-2-2 Troubleshooting Procedure ..................................................................................120

6-3 Debug LED Codes ....................................................................................... 122

Regulatory Statements............................................................................................ 126

Contact Us .............................................................................................................. 128

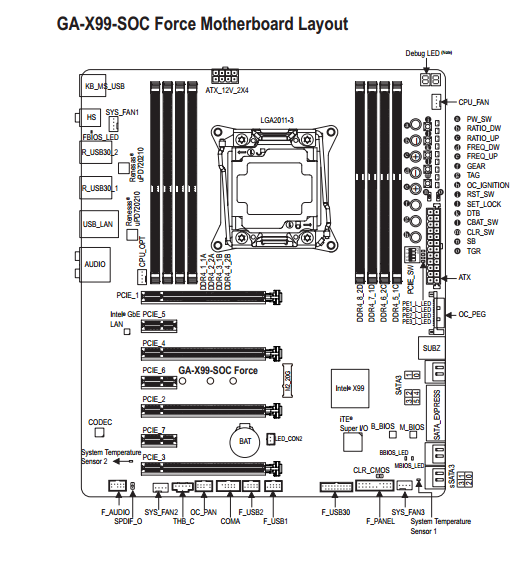

技嘉GA-X99-SOC Force主板示意图

技嘉GA-X99-SOC Force规格参数

中央处理器(CPU)

支持LGA2011-3插槽处理器：Intel® Core™ i7处理器

L3高速缓存取决于CPU

芯片组

Intel® X99 高速芯片组

内存

8个DDR4 DIMM插槽，最高支持到64 GB

* 由于Windows 32-bit操作系统的限制，若安装超过4 GB容量内存时，实际上显示之内存容量将少于实际安装的内存容量。

支持4信道内存技术

支持DDR4 3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400(O.C.) / 2133 MHz

支持non-ECC内存

支持Extreme Memory Profile (XMP)内存

支持RDIMM 1Rx8内存 (non-ECC模式运作)

音效

内建Realtek® ALC1150芯片

支持High Definition Audio

支持2/4/5.1/7.1声道

支持S/PDIF输出

网络

内建Intel® GbE 网络芯片(10/100/1000 Mbit)
