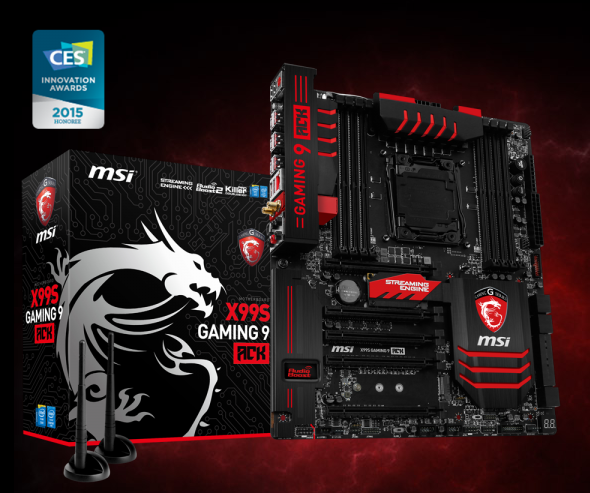

微星X99S GAMING 9 ACK是最新一款主板,目前即将上市。采用新的LGA2011-3接口,可继续兼容SNB-E和IVY-E的LGA2011,支持DDR4内存,原生USB3.0。以下文档是微星X99S GAMING 9 ACK主板使用手册,为英文版本,有需要的朋友可立即下载此文档。
温馨提示:
本文档为PDF格式文档,因此需确保在阅读之前你已经安装了pdf阅读器,如果尚未安装阅读器,建议下载福昕pdf阅读器或其他PDF阅读器,进行安装后阅读。
微星X99S GAMING 9 ACK主板使用手册目录
Chapter 1 Getting Started............................................................................1-1
Packing Contents .................................................................................................1-2
Assembly Precautions ..........................................................................................1-3
Motherboard Specifications ..................................................................................1-4
Block Diagram ......................................................................................................1-7
Connectors Quick Guide ......................................................................................1-8
Back Panel Quick Guide ....................................................................................1-10
CPU (Central Processing Unit) ..........................................................................1-12
Introduction to the LGA2011-3 CPU ............................................................1-12
CPU & Heatsink Installation .........................................................................1-13
Memory ..............................................................................................................1-16
Up to Quad-Channel mode ..........................................................................1-16
Defined Channel list .....................................................................................1-16
Suggestions for Multi-Channel mode population rule ..................................1-17
Dual-Channel mode .....................................................................................1-17
Triple-Channel mode ...................................................................................1-17
Quad-Channel mode ...................................................................................1-17
Quad-Channel mode ...................................................................................1-18
Mounting Screw Holes .......................................................................................1-19
Power Supply .....................................................................................................1-20
JPWR1~3: ATX Power Connectors .............................................................1-20
Expansion Slots .................................................................................................1-21
PCI_E1~5: PCIe Expansion Slots ................................................................1-21
PCIe Bandwidth Table ................................................................................1-21
Video/ Graphics Cards ......................................................................................1-22
Single Video Card Installation ......................................................................1-22
Internal Connectors ............................................................................................1-23
SATA1~10: SATA Connectors ....................................................................1-23
SATA_EX1: SATA Express Connector .......................................................1-24
M2_1: M.2 Port ............................................................................................1-24
CPUFAN1~2,SYSFAN1~3: Fan Power Connectors ....................................1-25
JFP1, JFP2: System Panel Connectors ......................................................1-26
JUSB3~4: USB 3.0 Expansion Connectors .................................................1-27
JUSB1~2: USB 2.0 Expansion Connectors .................................................1-28
JCI1: Chassis Intrusion Connector ..............................................................1-28
JAUD2: Front Panel Audio Connector .........................................................1-29
AUDPWR1: Direct Audio Power Connector ................................................1-29
JTPM1: TPM Module Connector ................................................................1-30
Voltage Checkpoints ..........................................................................................1-31
FV1: V-Check Connectors ...........................................................................1-31
Button .................................................................................................................1-32
OC1: OC Genie Button ...............................................................................1-32
POWER1: Power Button ..............................................................................1-33
RESET1: Reset Button ................................................................................1-33
Jumper ...............................................................................................................1-34
JBAT1: Clear CMOS Jumper .......................................................................1-34
Switch .................................................................................................................1-35
BIOS1: Multi-BIOS Switch ...........................................................................1-35
OC_SWITCH6: OC Genie Mode Switch ......................................................1-36
AUD_SW1: Audio Power Switch ..................................................................1-36
SLOW_1: Slow Mode Booting Switch ..........................................................1-37
LED Status Indicators ........................................................................................1-38
LED Status Table .........................................................................................1-38
Debug Code LED Table ...............................................................................1-39
Drivers and Utilities ............................................................................................1-40
Driver/ Utilities Installation ...........................................................................1-40
Chapter 2 Quick Installation ........................................................................2-1
CPU Installation ...................................................................................................2-2
Memory Installation ..............................................................................................2-4
Motherboard Installation .......................................................................................2-5
Power Connectors Installation .............................................................................2-7
SATA HDD Installation .........................................................................................2-9
M.2 module Installation ......................................................................................2-10
Front Panel Connector Installation .....................................................................2-11
JFP1 Connector Installation .........................................................................2-11
Front Panel Audio Connector Installation ....................................................2-11
Peripheral Connector Installation .......................................................................2-12
USB2.0 Connector Installation .....................................................................2-12
USB3.0 Connector Installation .....................................................................2-12
Graphics Card Installation ..................................................................................2-13
Chapter 3 BIOS Setup .................................................................................3-1
Entering Setup .....................................................................................................3-2
Entering BIOS Setup .....................................................................................3-2
Overview ..............................................................................................................3-3
Operation .............................................................................................................3-6
Updating BIOS .....................................................................................................3-7
Updating the BIOS with M-FLASH .................................................................3-7
SETTINGS ...........................................................................................................3-8
System Status ................................................................................................3-8
Advanced .......................................................................................................3-8
Boot .............................................................................................................3-13
Security ........................................................................................................3-14
Save & Exit ..................................................................................................3-15
OC ......................................................................................................................3-16
M-FLASH ...........................................................................................................3-26
OC PROFILE .....................................................................................................3-27
HARDWARE MONITOR ....................................................................................3-28
Appendix A Realtek Audio .......................................................................... A-1
Software Configuration .........................................................................................A-2
Software panel overview ................................................................................A-2
Auto popup dialog ..........................................................................................A-3
Appendix B Intel RAID ................................................................................ B-1
Introduction ..........................................................................................................B-2
Using Intel Rapid Storage Technology Option ROM............................................B-3
Degraded RAID Array ........................................................................................B-10
System Acceleration (optional) ..........................................................................B-12
RST Synchronization (optional) .........................................................................B-14

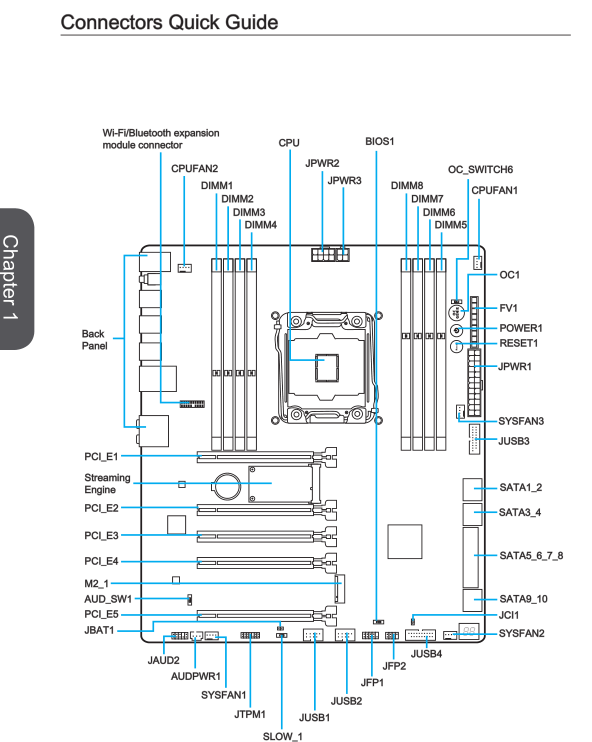

微星X99S GAMING 9 ACK连接器快速安装指南
微星X99S GAMING 9 ACK规格参数
DDR4内存:DDR4:2133*/2200*/2400*/2600*/2666*/2750*/3000*/3110*/3333*(*OC)MHz
SATA:Express:1
CPU插槽:2011-3
CPU(最高支持):i7
M.2 port:1
系统总线:100:/:125:/:167MHz
芯片组:Intel® X99 Express Chipset
内存通道:Quad
内存插槽:8
最大内存:(GB):128
PCI-Ex16:5
PCI-E Gen:Gen3
SATAIII:10*(*2x:SATA:Express)
USB 3.0接口(前端):4
USB 2.0接口(前端):4
RAID:0/1/5/10
网络接口:10/100/1000*1
TPM:1
USB:3.0接口(背板):8
USB:2.0接口(背板):2
音源接口(背板):5+Optical:SPDIF
DirectX:DX11
4-way:SLI:Y
尺寸:EATX
SLI:Y
3-way:SLI:Y
CrossFire:Y
