TL-WA7210N配置详细说明书pdf格式

TL-WA7210N是一款150M室外高功率无线接入器，支持IEEE 802.11b/g/n标准，无线速率达150Mbps，支持60米范围内Passive PoE供电。以下文档是TL-WA7210N详细配置指南，有需要的朋友可立即下载此文档。
温馨提示：

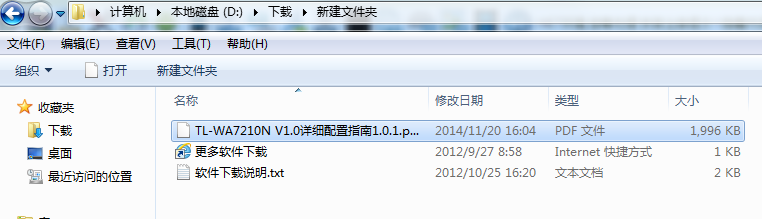

本文档为PDF格式文档，因此需确保在阅读之前你已经安装了pdf阅读器，如果尚未安装阅读器，建议下载福昕pdf阅读器或其他PDF阅读器，进行安装后阅读。

TL-WA7210N详细配置指南目录

第1章产品概述...........................................................................................................................1

1.1产品简介...................................................................................................................................1

1.2主要特性...................................................................................................................................1

1.3本书约定...................................................................................................................................2

第2章硬件描述...........................................................................................................................3

2.1前面板示意图...........................................................................................................................3

2.2后面板......................................................................................................................................4

2.3系统需求...................................................................................................................................4

2.4安装环境...................................................................................................................................4

第3章快速安装指南....................................................................................................................5

3.1硬件连接...................................................................................................................................5

3.1.1AP客户端路由模式..........................................................................................................5

3.1.2AP路由模式.....................................................................................................................5

3.1.3接入点模式.......................................................................................................................6

3.1.4多SSID模式....................................................................................................................6

3.1.5中继模式...........................................................................................................................7

3.1.6桥接模式...........................................................................................................................7

3.1.7客户端模式.......................................................................................................................8

3.2建立正确的网络连接.................................................................................................................8

3.3快速安装指南.........................................................................................................................11

3.3.1AP客户端路由...............................................................................................................13

3.3.2AP路由...........................................................................................................................16

3.3.3接入点.............................................................................................................................19

3.3.4多SSID...........................................................................................................................20

3.3.5中继................................................................................................................................23

3.3.6桥接................................................................................................................................26

3.3.7客户端.............................................................................................................................29

第4章接入点模式、多SSID模式、中继模式、桥接模式和客户端模式......................................................32

4.1登录........................................................................................................................................32

4.2运行状态.................................................................................................................................32

4.3设置向导.................................................................................................................................33

4.4工作模式.................................................................................................................................33

4.5网络参数.................................................................................................................................34

4.6无线设置.................................................................................................................................34

4.6.1无线基本设置..................................................................................................................35

4.6.2无线安全设置..................................................................................................................36

4.6.3无线MAC地址过滤........................................................................................................40

4.6.4无线高级设置..................................................................................................................42

4.6.5天线对准.........................................................................................................................43

4.6.6无线距离设置..................................................................................................................43

4.6.7无线流量监测..................................................................................................................44

4.6.8无线主机状态..................................................................................................................45

4.7DHCP服务器.........................................................................................................................45

4.7.1DHCP服务.....................................................................................................................45

4.7.2客户端列表.....................................................................................................................46

4.7.3静态地址分配..................................................................................................................47

4.8系统工具.................................................................................................................................48

4.8.1SNMP.............................................................................................................................48

4.8.2时间设置.........................................................................................................................49

4.8.3诊断工具.........................................................................................................................50

4.8.4看门狗.............................................................................................................................51

4.8.5简单速率测试..................................................................................................................52

4.8.6软件升级.........................................................................................................................52

4.8.7恢复出厂设置..................................................................................................................53

4.8.8备份和载入配置..............................................................................................................53

4.8.9重启设备.........................................................................................................................54

4.8.10修改登录口令..................................................................................................................55

4.8.11系统日志.........................................................................................................................55

4.8.12流量统计.........................................................................................................................56

第5章AP客户端路由模式和AP路由模式...............................................................................58

5.1登录........................................................................................................................................58

5.2运行状态.................................................................................................................................58

5.3设置向导.................................................................................................................................59

5.4工作模式.................................................................................................................................59

5.5网络参数.................................................................................................................................60

5.5.1WAN口设置...................................................................................................................60

5.5.2MAC地址克隆................................................................................................................67

II

5.5.3LAN口设置.....................................................................................................................68

5.6无线设置.................................................................................................................................68

5.6.1无线基本设置..................................................................................................................69

5.6.2无线安全设置..................................................................................................................71

5.6.3无线MAC地址过滤........................................................................................................74

5.6.4无线高级设置..................................................................................................................76

5.6.5天线对准.........................................................................................................................77

5.6.6无线距离设置..................................................................................................................77

5.6.7无线流量监测..................................................................................................................78

5.6.8无线主机状态..................................................................................................................78

5.7DHCP服务器.........................................................................................................................79

5.7.1DHCP设置服务..............................................................................................................79

5.7.2客户端列表.....................................................................................................................80

5.7.3静态地址分配..................................................................................................................80

5.8转发规则.................................................................................................................................81

5.8.1虚拟服务器.....................................................................................................................82

5.8.2特殊应用程序..................................................................................................................83

5.8.3DMZ主机........................................................................................................................84

5.8.4UPnP设置......................................................................................................................85

5.9防火墙设置.............................................................................................................................85

5.9.1安全设置.........................................................................................................................86

5.9.2高级安全设置..................................................................................................................86

5.9.3局域网WEB管理...........................................................................................................88

5.9.4远端WEB管理...............................................................................................................89

5.10家长控制.............................................................................................................................90

5.11访问控制.............................................................................................................................92

5.11.1控制规则.........................................................................................................................93

5.11.2主机列表.........................................................................................................................96

5.11.3访问目标.........................................................................................................................96

5.11.4日程计划.........................................................................................................................97

5.12路由功能.............................................................................................................................98

5.12.1静态路由表.....................................................................................................................99

5.12.2系统路由表.....................................................................................................................99

5.13IP带宽控制..........................................................................................................................100

5.13.1控制设置.......................................................................................................................100

5.13.2控制规则.......................................................................................................................101

5.14IP与MAC绑定....................................................................................................................102

5.14.1静态ARP绑定设置.......................................................................................................102

5.14.2ARP映射表..................................................................................................................103

5.15动态DNS..........................................................................................................................103

5.16系统工具...........................................................................................................................105

5.16.1时间设置.......................................................................................................................105

5.16.2诊断工具.......................................................................................................................106

5.16.3软件升级.......................................................................................................................107

5.16.4恢复出厂设置................................................................................................................108

5.16.5备份和载入配置............................................................................................................108

5.16.6重启设备.......................................................................................................................109

5.16.7修改登录口令................................................................................................................110

5.16.8系统日志.......................................................................................................................110

5.16.9流量统计.......................................................................................................................111

附录A:FAQ...................................................................................................................113

附录B:IE浏览器设置........................................................................................................................116

附录C:POE的使用...........................................................................................................................119

附录D:规格参数...............................................................................................................................121

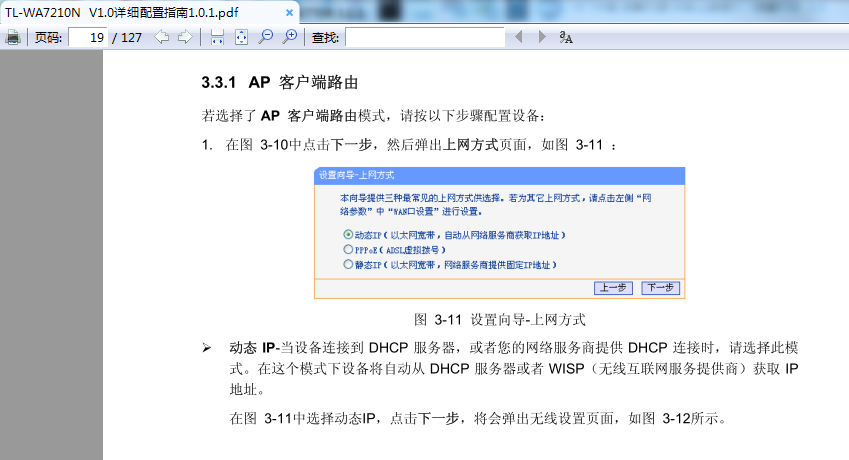

TL-WA7210NAP客户端路由设置（部分预览）

TL-WA7210N硬件规格

网络标准
IEEE 802.11n、E 802.11g、IEEE 802.11b、IEEE 802.3、IEEE 802.3u
端口
1个10/100M自适应LAN口，支持自动翻转，支持Passive PoE
1个RP-SMA外置天线接口
1个接地孔位
工作频率
2.4-2.4835GHz
无线速率
802.11n: 最高达150Mbps (动态)
802.11g: 最高达54Mbps (动态)
接收灵敏度
802.11n 150M: -76dBm 121.5M: -78dBm 108M: -80dBm 81M: -84dBm 54M:-87dBm 40.5M:-91dBm 27M:-92dBm 13.5M:-95dBm
802.11g 54M: -79dBm 48M: -81dBm 36M: -85dBm 12M: -92dBm 6M:-95dBm
指示灯
每设备具有1个Power、LAN、信号强度指示灯
按钮
1个Reset复位按钮
天线
2根12dBi双极化定向天线
辐射宽度
水平方向 60° ，垂直方向 30°
外部电源
12VDC/1.0A，支持60米范围内Passive PoE供电
使用环境
工作温度：-30℃ 到 70℃
存储温度：-40℃ 到 70℃
工作湿度：10% 到 90% RH不凝结
存储湿度：5% 到 90% RH不凝结
尺寸
250 mmx 85mm x 60.5mm
雷击防护
15KV ESD 防雷
4000V防雷
接地端子
最远无线传输距离
3000米以上
