        在WCF中对Session是默认支持的,但是和ASP.NET中的支持完全不同,说到Session,那么肯定有服务端(Service)和客户端(Client),客户端通过代理(Proxy)来访问服务端,所以Session的周期和Proxy的周期绑定。对分布式的程序而言,根据业务的要求,我们会有三种需求:
        第一:服务端不用保存客户端的状态,每次客户端的访问都是独立的;
        第二:服务端需要保持客户端的状态,每次客服端的请求会用到同一个Session;
        第三:在多用户中共享同一个实例(其实这里类似ASP.NET中的Application,但完全不一样)。
       下面我们就针对上述的三种要求,分享一下再WCF中的实现方式. 以及各种实现方式的优势和缺点。对上述三种使用场景,WCF已经提供了良好的支持,这就是Instancing Management。具体是实现方式是:Instance context model。可以这么说,Instance Context Mode决定着不同的Session表现。WCF中有三种 Instance Context Mode,他们分别是:
        >> Per-Call:每次的客户端请求分配一个新的服务实例。 类似于Net Remoting的SingleCall模式, 在这种方式下,程序的扩展性是最强的,在事务编程与队列服务中优势更为明显。但是由于频繁地创建与销毁实例,会对性能造成一定的影响。当然网上的牛人,已经考虑到使用线程池的方式来减少频繁地创建与销毁实例(参考地址:http://www.cnblogs.com/artech/archive/2008/08/05/1260594.html)
        >> PerSession: 服务端需要保持客户端的状态,为每次客户端连接分配一个服务实例,客户端的每次调用,会使用到同一个实例,如果实例销毁,客户端的调用会抛出异常。类似于Net Remoting的客户端激活模式;这是wcf的默认支持方式. 由于每个客户端都需要维护一个会话,需要占用较多的资源来保存服务会话状态。如果存在多个独立的客户端,则创建专门的服务实例的代价太大。
        >> Singleton: 所有客户端而言,都只有一个服务实例,当服务端被host的时候,就会创建,有且仅有一个服务实例来响应客户端服务调用的请求,在多个客户端请求下,服务端只会处理一个客户端的请求,其他的排队等候处理。因此在系统的吞吐量、相应效率、系统服务性能上都存在严重的瓶颈
好处是,可以共享数据.
      特别的强调两点:
      第一:上述三种 Instance context model ,但是并不是所有的Binding都支持 Session ,对Per-Call和Singleton而言,binding影响不大。对PerSession,就必须使用特定的Binding, 才可以,否则最终指向的是PerCall,见下表:

Binding

Session mode

Context mode

Async Dispose()

Instance mode

Basic

Allowed/NotAllowed

PerCall/PerSession

Yes

PerCall

TCP, IPC

Allowed/Required

PerCall

No

PerCall

TCP, IPC

Allowed/Required

PerSession

Yes

PerSession

WS (no security, no reliability)

NotAllowed/Allowed

PerCall/PerSession

Yes

PerCall

WS (with security or reliability)

Allowed/Required

PerSession

Yes

PerSession

WS (with security or reliability)

NotAllowed

PerCall/PerSession

Yes

PerCall



      第二:由于PerSession, 为每次客户端连接分配一个服务实例,会消耗服务器的资源,所以可以把PerSession和PerCall结合使用。在特定的条件下我们完全可以在客户端的Message中包括特定的用户****来,请求PerCall,来代替每次请求PerSession。当然这是在特定的情况下。
      下面来看具体的执行代码:
      1、建立服务契约

    [ServiceContract(Namespace = "http://www.cnblogs.com/wanqiming/")]
    public interface IInstanceContextMode
    {
        //操作契约
        [OperationContract]
        void SayHello();
    }



      2、实现PerCall,PerSession,Single的服务类

    #region PerCall

    [ServiceBehavior(InstanceContextMode = InstanceContextMode.PerCall)]
    public class WCFServicePerCall : IInstanceContextMode, IDisposable
    {
        //服务实例计数
        private int mCcount = 0;
        //构造函数
        public WCFServicePerCall()
        {
            Console.WriteLine("WCFServicePerCall Instance is Created ");
        }
        //实现接口定义的方法
        public void SayHello()
        {
            mCcount++;
            Console.WriteLine("WCFServicePerCall Instance Count is: {0} ", mCcount);
        }
        //实现接口定义的方法Dispose
        public void Dispose()
        {
            Console.WriteLine("WCFServicePerCall Instance is disposed ");
        }
    }
    #endregion



    #region PerSession
    //3.服务类.会话服务
    [ServiceBehavior(InstanceContextMode = InstanceContextMode.PerSession)]
    public class WCFServicePerSession : IInstanceContextMode
    {
        //服务实例计数
        private int mCcount = 0;
        //构造函数
        public WCFServicePerSession()
        {
            Console.WriteLine("WCFServicePerSession Instance is Created ");
        }
        //实现接口定义的方法
        public void SayHello()
        {
            mCcount++;
            Console.WriteLine("WCFServicePerSession Instance Count is: {0} ", mCcount);
        }
        //实现接口定义的方法Dispose
        public void Dispose()
        {
            Console.WriteLine("WCFServicePerSession Instance is disposed ");
        }
    }
    #endregion

    #region Single
    [ServiceBehavior(InstanceContextMode = InstanceContextMode.Single)]
    public class WCFServiceSingleTon : IInstanceContextMode
    {
        //服务实例计数
        private int mCcount = 0;
        //构造函数
        public WCFServiceSingleTon()
        {
            Console.WriteLine("WCFServiceSingleTon Instance is Created ");
        }
        //实现接口定义的方法
        public void SayHello()
        {
            mCcount++;
            Console.WriteLine("WCFServiceSingleTon Instance Count is: {0} ", mCcount);
        }
        //实现接口定义的方法Dispose
        public void Dispose()
        {
            Console.WriteLine("WCFServiceSingleTon Instance is disposed ");
        }
    }
    #endregion

       第三:服务端的配置文件

      <behaviors>
        <serviceBehaviors>
          <behavior name="DefaultBehavior">
            <serviceMetadata httpGetEnabled="true" />
            <serviceThrottling maxConcurrentCalls="100" maxConcurrentSessions="100" maxConcurrentInstances="100" />
            <serviceDebug includeExceptionDetailInFaults="true" />
          </behavior>
        </serviceBehaviors>
      </behaviors>



      <services>

        <service  name="Fish.ServiceImpl.WCFServicePerCall">
          <endpoint address="" binding="basicHttpBinding" contract="Fish.ServiceInterfaces.IInstanceContextMode"></endpoint>
          <endpoint address="" binding="netTcpBinding" contract="Fish.ServiceInterfaces.IInstanceContextMode"></endpoint>
          <host>
            <baseAddresses>
              <add baseAddress="http://localhost:8080/Fish/WCFServicePerCall/>
              <add baseAddress="net.tcp://localhost:808/Fish/WCFServicePerCall"/>
            </baseAddresses>
          </host>
        </service>

        <service name="Fish.ServiceImpl.WCFServicePerSession">
          <endpoint address="" binding="basicHttpBinding" contract="Fish.ServiceInterfaces.IInstanceContextMode"></endpoint>
          <endpoint address="" binding="netTcpBinding" contract="Fish.ServiceInterfaces.IInstanceContextMode"></endpoint>
          <host>
            <baseAddresses>
              <add baseAddress="net.tcp://localhost:808/Fish/WCFServicePerSession"/>
              <add baseAddress="http://localhost:8080/Fish/WCFServicePerSession/>
            </baseAddresses>
          </host>
        </service>

        <service behaviorConfiguration="DefaultBehavior" name="Fish.ServiceImpl.WCFServiceSingleTon">
          <endpoint address="" binding="netTcpBinding" contract="Fish.ServiceInterfaces.IInstanceContextMode"></endpoint>
          <endpoint address="" binding="basicHttpBinding" contract="Fish.ServiceInterfaces.IInstanceContextMode"></endpoint>
          <host>
            <baseAddresses>
              <add baseAddress="net.tcp://localhost:808/Fish/WCFServiceSingleTon"/>
              <add baseAddress="http://localhost:8080/Fish/WCFServiceSingleTon/>
            </baseAddresses>
          </host>
        </service>


       第四:Host



    class Program
    {
        static void Main(string[] args)
        {
            try
            {
                List<ServiceHost> hosts = new List<ServiceHost>();
                hosts.Add(new ServiceHost(typeof(WCFServicePerCall)));          //PerCall
                hosts.Add(new ServiceHost(typeof(WCFServicePerSession)));       //PerSession
                hosts.Add(new ServiceHost(typeof(WCFServiceSingleTon)));        //SingleTon

                hosts.ForEach(host => host.Open());

                Console.WriteLine("All services are started...");
                Console.Read();
            }
            catch(Exception e)
            {
                Console.WriteLine("错误信息是:"+e.ToString());
            }
        }
    }



      第五:客户端执行代码

class Program
    {
        static void Main(string[] args)
        {
            PerCall();

            PerSession();

            Single();

            Console.WriteLine("  ");

        }

        #region PerCall
        private static void PerCall()
        {
            var perCall = new ChannelFactory<IInstanceContextMode>("tcpPerCall").CreateChannel();
            perCall.SayHello();
            perCall.SayHello();
            perCall.SayHello();
            ServiceBroker.DisposeService<IInstanceContextMode>(perCall);

            var tcpPerCall = new ChannelFactory<IInstanceContextMode>("tcpPerCall").CreateChannel();
            tcpPerCall.SayHello();
            tcpPerCall.SayHello();
            tcpPerCall.SayHello();
            ServiceBroker.DisposeService<IInstanceContextMode>(tcpPerCall);



        }
        #endregion

        #region PerSession
        private static void PerSession()
        {
            var perSession = new ChannelFactory<IInstanceContextMode>("basicHttpPerSession").CreateChannel();
            perSession.SayHello();
            perSession.SayHello();
            perSession.SayHello();
            ServiceBroker.DisposeService<IInstanceContextMode>(perSession);

            var tcpPerSession = new ChannelFactory<IInstanceContextMode>("tcpPerSession").CreateChannel();
            tcpPerSession.SayHello();
            tcpPerSession.SayHello();
            tcpPerSession.SayHello();
            ServiceBroker.DisposeService<IInstanceContextMode>(tcpPerSession);


        }
        #endregion

        #region Single
        private static void Single()
        {
            var perSession = new ChannelFactory<IInstanceContextMode>("basicHttpSingleTon").CreateChannel();
            perSession.SayHello();
            perSession.SayHello();
            perSession.SayHello();
            ServiceBroker.DisposeService<IInstanceContextMode>(perSession);

            var tcpPerSession = new ChannelFactory<IInstanceContextMode>("tcpSingleTon").CreateChannel();
            tcpPerSession.SayHello();
            tcpPerSession.SayHello();
            tcpPerSession.SayHello();
            ServiceBroker.DisposeService<IInstanceContextMode>(tcpPerSession);


        }
        #endregion
    }



      第六:客户端配置文件
    <client>
      <endpoint name="httpPerCall" address="http://localhost:8080/Fish/WCFServicePerCall" binding="basicHttpBinding" contract="Fish.ServiceInterfaces.IInstanceContextMode" ></endpoint>
      <endpoint name="tcpPerCall" address="net.tcp://localhost:808/Fish/WCFServicePerCall" binding="netTcpBinding" contract="Fish.ServiceInterfaces.IInstanceContextMode" ></endpoint>
      <endpoint name="basicHttpPerSession" address="http://localhost:8080/Fish/WCFServicePerSession" binding="basicHttpBinding" contract="Fish.ServiceInterfaces.IInstanceContextMode" ></endpoint>
      <endpoint name="tcpPerSession" address="net.tcp://localhost:808/Fish/WCFServicePerSession" binding="netTcpBinding" contract="Fish.ServiceInterfaces.IInstanceContextMode" ></endpoint>
      <endpoint name="basicHttpSingleTon" address="http://localhost:8080/Fish/WCFServiceSingleTon" binding="basicHttpBinding" contract="Fish.ServiceInterfaces.IInstanceContextMode" ></endpoint>
      <endpoint name="tcpSingleTon" address="net.tcp://localhost:808/Fish/WCFServiceSingleTon" binding="netTcpBinding" contract="Fish.ServiceInterfaces.IInstanceContextMode" ></endpoint>
    </client>

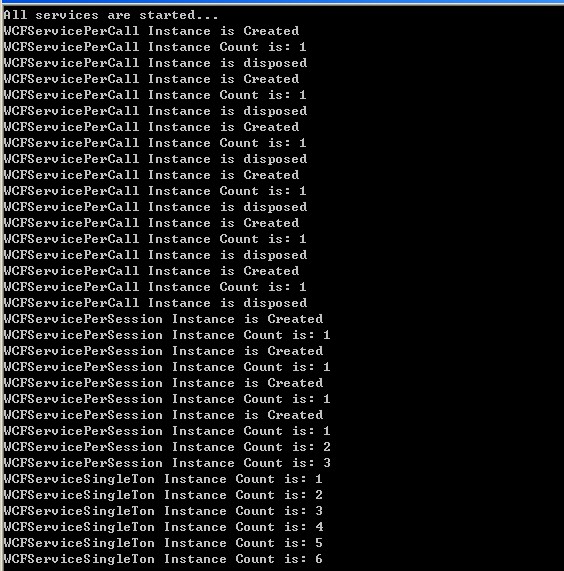

      执行的结果如下:
